■Pressure Reducing Valves

Pressure reducing valves are used to set the pressure of a hydraulic circuit below that of the main circuit. In addition, operation under remote control is possible by using the remote control port.

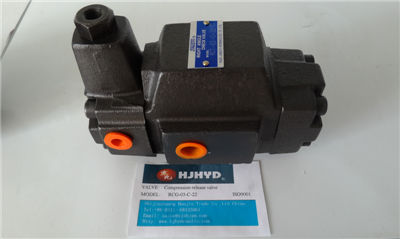

■Pressure Reducing and Check Valves

Pressure reducing and check valves are used to set the pressure  of a hydraulic circuit below that of the main circuit. They have check valves, which allow a free flow from the secondary side to the primary.

■Instructions

●To adjust the pressure, loosen the lock nut and turn    the pressure adjustment handle slowly clockwise for higher pressures and anti-clockwise for lower pressures. After adjustments, do not forget to tighten the lock nut.

●Connect the drain port directly to the tank in which case the pressure at the drain port should be kept at a low back pressure close to the atmospheric pressure.

●There are two threaded connection type primary pressure ports. They can be connected each other in-line; one as an inlet and the other as an outlet or the valve can be used by plugging one of the pressure ports.
