Low price High quality VQ series high pressure high speed hydraulic vane pump

Good quality Hydraulic Steering Unit for sales
I'm Online Chat Now

Low price High quality VQ series high pressure high speed hydraulic vane pump

China Low price High quality VQ series high pressure high speed hydraulic vane pump supplier

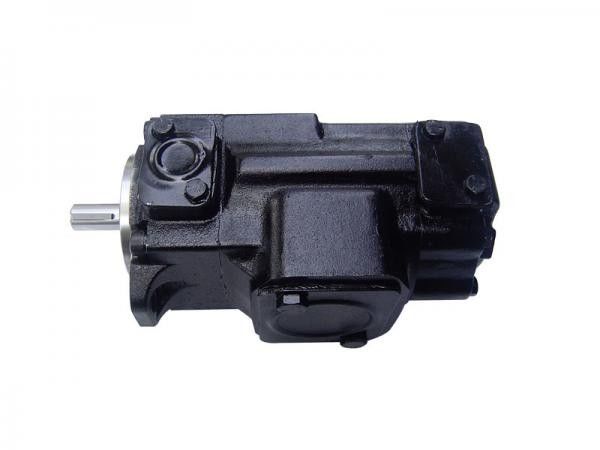

Large Image :  Low price High quality VQ series high pressure high speed hydraulic vane pump

Product Details:

Place of Origin: China
Brand Name: Hanjiu
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Discussible
Packaging Details: Wooden case or others
Delivery Time: Within 7 days after receive the prepayment
Payment Terms: TT/LC
Supply Ability: 1000 Pieces/month
Contact Now
Detailed Product Description

Vickers,caterpillar vane pump
1.High performance, low noise and long life
2.Completely interchangeable with original

Technical Data



This hydraulic vane pump was developed to meet ever increasing demands for vehicle by our company .This series pump adopts replaceable pumping cartridge all parts that wear none contact the body .Field service can be accomplished without removing the pump from its mouting , eliminating  the  need for factory repair which reduces expensive downtime, with hydraulic balance, bearing loads resulting from pressure are eliminated and the only radial loads are those imposed by the drive itself. Longer life and minimum maintenance are direct results; wear compensation is inherent in the design .Intra-vane design enables that continously applied outlet pressure between vane and intra vane reduces tip loading to the extent desired on a particular pump. Outward balanced thrust of vane inlet port aera is equal to outlet pressure times projected area of end of intra-vane. This thrust can be controlled without sacrificing vane thickness ,To resist the cantilever loads of any practical outlet pressure ,vane thickness can be increased without increasing load bettween and cam ring .The dual vane arrangement assures solid tracking of the cam ring throughout the pumping cycle, This means less leakage across vane tips which enhances volumetric efficiency, low noise and less cam ring wear .Wear resistant flexible side plates are available in the design ,thus further increasing the speed and service life.

Installation meet ISOSAE Standards ,with compete specifications ,reliable performance ,construction and convenient installation and easy maintenance, it is widely used in hydraulic systems for vehicles and other machineries.



Vickers VQ hydraulic vane pump

1.High performance, low noise and long life

2.Completely interchangeable with original

3.Very competitive price

4.1 year of warranty

5. Widely applicable for industrial machinery and agricultural machinery etc.





Technical Data
serie model placement anti-wear hydrualic oil
      max.pressure max.speed
    ml/r Mpa rpm
20VQ 5 18 21 2700
8 27.4 21
9 29.2 21
11 36.4 21
12 39.5 16
14 45.9 14
25VQ 12 40.2 21 2700
14 45.4 2700
17 55.2 2500
19 60.7 2500
21 67.5 2500
30VQ 24 76.2 14 2500
28 88.2 14 2500
35VQ 21 67.9 21 2500
25 81.6
30 97.7
35 112.8
38 121.6
45VQ 42 138.7 17.2 2200
47 148.3
50 162.3
57 179.8
60 193.4




6E2387 3G1266 3G1266 3G1267 3G1267
6E2387 3G1266 3G1266 3G1267 3G1267
6E2396 3G1266 3G1266 3G1267 3G1267
6E2396 3G1266 3G1266 3G1267 3G1267
6E4258 3G1266 3G1266 3G1267 3G2195
6E4258 3G1266 3G1266 3G1267 3G2195
3G1266 3G1266 3G1266 3G1267 3G2195
3G1266 3G1267 3G1266 3G2195 3G
