rubber hydraulic hose

China rubber hydraulic hose supplier

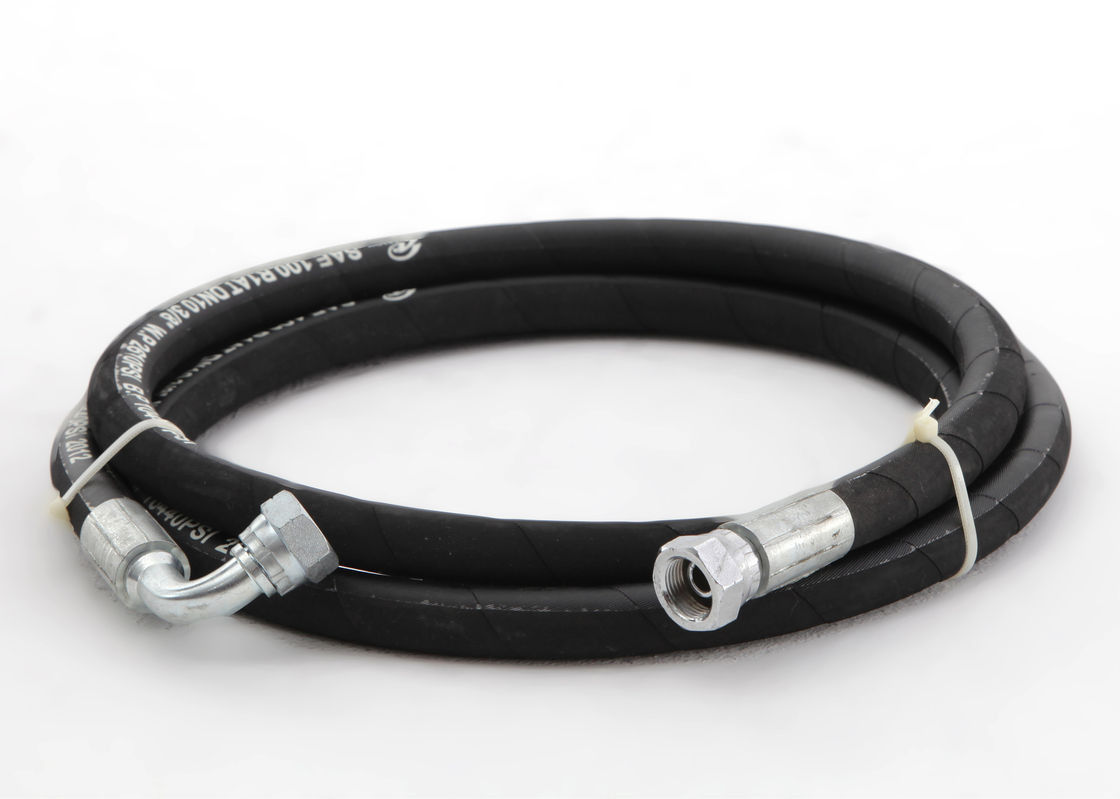

Large Image :  rubber hydraulic hose

Product Details:

Place of Origin: China
Brand Name: Hanjiu
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: Discussible
Packaging Details: weaving strip or as your requirement,
Delivery Time: Within 7 days after receive the prepayment
Payment Terms: TT/LC
Supply Ability: 10000 Pieces/month
Contact Now
Detailed Product Description





Steel wire braided hydraulic hose Product standards

lhydraulic support of standard, steel wire rubber hose and hose assemblies are based on GB/T3683-1992

wire winding reinforced hydraulic rubber coated with rubber hose and hose assemblies are based on GB/T10544-2003.

The test specification of hydraulic hose assembly and the intermediate joints are consulted with MT98-2006.



 Steel wire braided hydraulic hose Product main purpose and scope of application

lSteel wire braided hydraulic hose and hose assemblies is mainly used in hydraulic equipment transfer pressure coal construction machinery industry.

According to customer requirements, provide all kinds of medium and all kinds of hose assembly.



The meaning of Steel wire braided hydraulic hose Types

l Four layers of steel wire winding hydraulic support hose product model is expressed as 4 SP - 16, 19, 25, 31.5, 38. Model: 4-4 layers       S - winding       P - medium pressure       16-38 - nominal diameter

l Four layer steel wire winding hydraulic support hose assembly model expressed as KJ4SP - 16, 19, 25, 31.5, 38.Model: KJ - hose assemblies       4-4 layer       S - winding       P - medium pressure       16-38 - nominal diameter

Steel Wire Braided Hydraulic Hose Reference Specification





Inside Diameter

(mm)

Layer

Reinforcement Diameter (mm)

Outside Diameter(mm)

Working Pressure(MPa)

Proof Pressure(MPa)

Burst Pressure(MPa)

Min.Bend Radius(mm)

DN

min

max

measure

Tol

measure

Tol

Map

Map

Map

mm

6.3

6.2

7

1

11.5

±0.5

13.5

±0.5

18

30

72

100

2

13

15

-0.3

35

56

140

3

14.5

16.5



40

61

160

8

7.7

8.5

1

13.5

±0.5

15.5

±0.5

16

25

64

115

2

15

17

-0.3

32

50

128

3

16.5

18.5



37

55

148

10

9.3

10.1

1

15.5

±0.5

17.5

±0.5

14

22

56

130

2

17

19

-0.3

28

50

112

3

18.5

20.5



33

55

132

12.5

12.3

13.5

1

19.4

±0.5

21.4

±0.5

13

20

52

180

2

20.9

22.9

-0.3

25

40

100

3

22.4

24.4



30

45

120

16

15.5

16.7

1

22.4

±0.5

24.8

±0.5

10

16

40

205

2

23.9

26.3

-0.3

20

32

80

3

25.4

27.8



25

37

100
