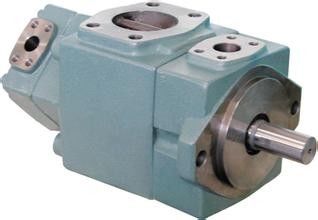

These pumps are of high pressure and high performance, which have been developed especially for low noise operation.
To comply with a variety of applications including injection moulding machines, PV2R series single pumps provide the
output flow of such a wide range as from 5.8 to 237 cm3
/rev (.354 to 14.46 ./rev).
The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit.
Therefore, the replacement of the driving parts can be done easily.
<table cellspacing="0" cellpadding="0" xhe-border"="" style="border: 1px dotted rgb(211, 211, 211); border-collapse: collapse; margin: 2px; min-width: 400px; text-align: center;">
Model Geometric displ.(cm3l/rev) Max.operation pressure mpa(psi) Speed ofrotation Petroleum base oils Water containing fluids Synthetic fluids Max Min Anti-weartype R&Otype Anti-wearwater glycols Waterglycols Water in oilemulsions PhosphateEsters PV2R1-10 9.4 21(3050) 16(2320) 16 (2320) 7(1020) 7(1020) 16(2320) 1800 750 PV2R1-12 12.2 PV2R1-14 13.7 PV2R1-17 16.6 PV2R1-19 18.6 PV2R1-23 22.7 PV2R1-25 25.3 PV2R1-31 31 16(2320) PV2R2-41 41.3 21(3050) 14(2030) 16(2320) 7(1020) 7(1020) 14(2030) 1800 600 PV2R2-47 47.2 PV2R2-53 52.5 PV2R2-59 58.2 PV2R2-65
64.7
