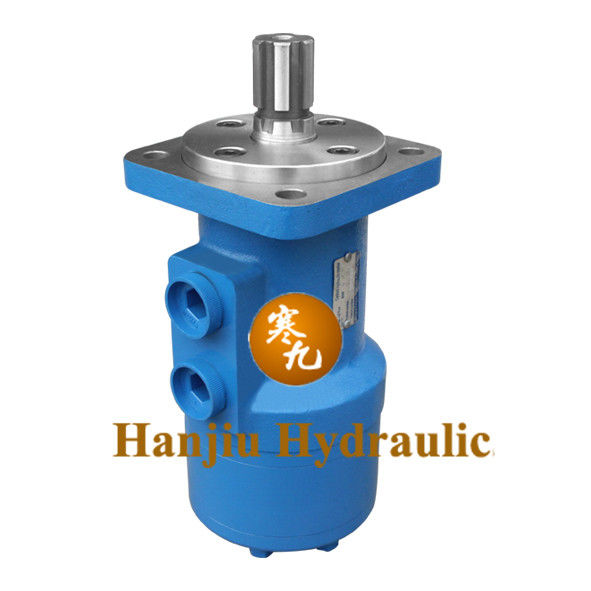

BM3 motor

BM3 hydraulic motors

The specification  of  orbit hydraulic motor

Advantage:
1.Small, lightweight, smaller than  other  hydraulic  motor of same  toque
2.Wide speed range, non-grade adjustment of   speed,   minimum  steady speed is 15rpm, easy and convenient to be equipped with, low cost
3.Used in series and in parallel way of a hydraulic system
4.Small rotating inertia, easy to be started, rotate both in clockwise and counterclockwise way,
5.No need stop rotating when change direction

Main function features:
1.Shaft groove distributes flow, simple and compact structure, high accuracy  of flow distributing
2.Stator-rotor in tooth shape, high mechanical efficiency, the longer working lifetime under high pressure
3.Touching-ball bearing of coupled-angle,bear higher loading in both radial and axial direction, small friction force, high mechanical efficiency

Main specification

 Note:

1. Intermittent means the entrance of the maximum pressure;continuous working pressure means the differential pressure.

2. Motor should not work under the highest pressure  and the maximum speed.

3. The running time should not exceed 10% under  intermittent working conditions.

4. The Maximum working temperature is 80°.

5. The Maximum allowable back pressure is 10 MPa,but the recommended back pressure should not exceed 5PM.a drain pipes is needed when exceeding.

6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.

7. Recommending N68 anti-wear hydraulic oil,viscosity 37-73cSt,cleanliness ISO18/13.
