Rexroth piston Pumps

Hanjiu piston pump

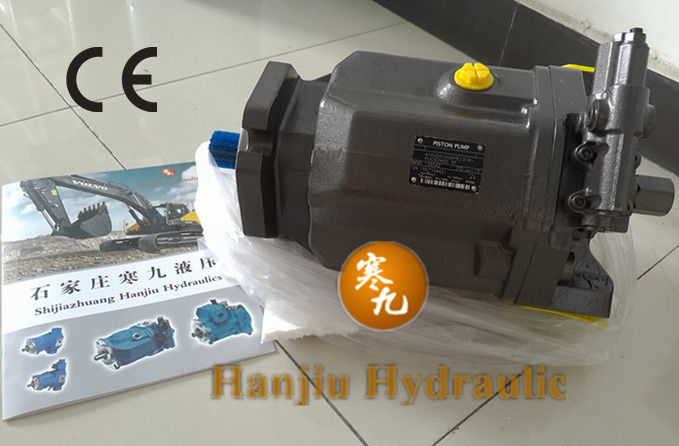

Rexroth A10VSO of A10VSO16,A10VSO18,A10VSO28, A10VSO45,A10VSO71,A10VSO100,A10VSO140 axial piston pump

1. Variable displacement axial piston pump

2. Completely inerchangeable with original

3. For engineering machinery, maritime and boat and industrial machinery etc.
4. For open-loop Swashplate axial piston pump
5. Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar
6. Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
7. There is constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed
8. Low-noise, high efficiency, high reliability, long life
9. Small size, high power density
10. Excellent oil absorption properties
11. Drive shaft can withstand the axial and radial loads
12. SAE and ISO mounting flange
13. For pass-axis structure, and for multi-loop system
14. Very competitive price
15. 1 year of warranty


A10V(S)O Technical Parameter
Sizes 16/18 28 45 71 100 140
Displacement Vg max Cm3 18 28 45 71 100 140
Max speed nmax rpm 3300 3000 2600 2200 2000 1800

Max. flow At nmax
qv
L/min 59.4 84 117 156 200 252
At 1500r/min 27 42 68 107 150 210
(p=280bar )
Max. power At nmax
Pmax
Kw 27.7 39 55 73 93 118
At 1500r/min 12.6 20 32 50 70 98
(p=280bar )
Max. torque At Vg max Tmax Nm 80.1 125 200 316 445 623
Weight m kg 12


Application:
Engineering machinery,
Maritime
Boat
Industrial machinery etc.

Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
