Hydraulic Orbit Motors (BM series)

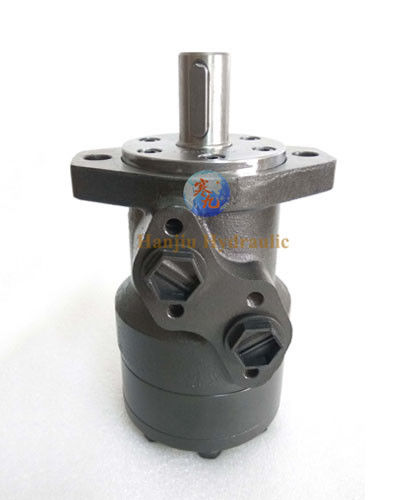

: Large Image : Hydraulic Orbit Motors (BM series)

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu Hydraulic
Model Number:	BMR

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 55-60/piece
Packaging Details:	wooden case or others
Delivery Time:	10 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000 pieces/month

Contact Now

Detailed Product Description

Hydraulic Orbit Motor BMR

BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.
Characteristic Features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation.

Order Code:

Code
BMR
Displacement
36 50 80 100 125 160 200 250 315 375
Flange
2	2-Ø13.5 Rhomb-flange,pilot Ø82.5×8
4	4-Ø13.5 Rhomb-flange,pilot Ø82.5×8
H4	4-3/8-16 Square-flange,pilot Ø44.4×2.8
H5	4-M10 Square-flange,pilot Ø44.4×2.8
Output Shaft
A	Shaft Ø25,parallel Key 8x7x32
B	Shaft Ø32,parallel Key 10x8x45
C	Shaft Ø25.4,parallel Key 6.35x6.35x31.75
E	Shaft Ø25.4,splined tooth SAE 6B
R	Short shaft Ø25.4,parallel key 6.35x6.35x31.75
F	Shaft Ø31.75,splined tooth 14-DP12/24
FD	Long shaft Ø31.75,splined tooth 14-DP12/24
G	Shaft Ø31.75,parallel Key 7.96x7.96x31.75
T	Cone-Shaft Ø28.56,parallel Key B5x5x14
Port and Drain Port
D	G1/2 Manifold Mount 4-M8, G1/4
M	M22×1.5 Manifold Mount 4-M8, M14×1.5
S	7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF
P	1/2-14 NPTF Manifold 4-5/16-18UNC,7/16-20UNF
R	PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard
N	Big radial force
O	No case drain
F	Free Running
LS	Low Speed

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
