Product Details:
Payment & Shipping Terms:
|
| Structure: | Gear Pump | Usage: | Oil |
|---|---|---|---|
| Power: | Hydraulic | Standard Or Nonstandard: | Standard |
| Fuel: | Gasoline | Pressure: | High Pressure |
Detailed Product Description
Descrition:

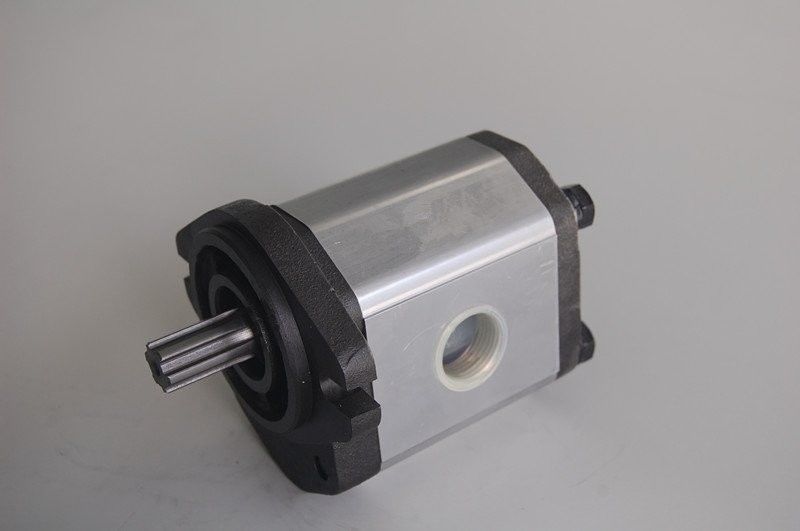

Complete Rexroth Gear pump Series, max pressure is 250bar, max speed 7000r/min, have rotation of clockwise and Anti-clockwise
Applications: Hydraulic system, engineering machine, industry machine
Specifications:
| Type | Displacement | Max pressure | Max speed | Min speed | Dimensions | |||||||||
| P1 | P2 | P3 | M | L | B | D | H | b | d | h | ||||
| Bar | Bar | Bar | r/min | r/min | mm | mm | mm | mm | mm | mm | ||||
| BHP280-D-3 | 3 | 270 | 285 | 300 | 4000 | 800 | 91.1 | 43.6 | 30 | 13 | M5 | 30 | 13 | M6 |
| BHP280-D-4 | 4 | 270 | 285 | 300 | 4000 | 600 | 92.7 | 44.4 | 30 | 13 | M5 | 30 | 13 | M6 |
| BHP280-D-6 | 6 | 270 | 285 | 300 | 4000 | 600 | 96 | 46 | 30 | 13 | M5 | 30 | 13 | M6 |
| BHP280-D-8 | 8 | 270 | 285 | 300 | 3500 | 500 | 99.3 | 47.7 | 30 | 13 | M5 | 30 | 13 | M6 |
| BHP280-D-10 | 10 | 270 | 285 | 300 | 3000 | 500 | 102.6 | 49.3 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-12 | 12 | 270 | 285 | 300 | 3000 | 500 | 105.9 | 51 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-14 | 14 | 250 | 265 | 280 | 4000 | 500 | 109.3 | 52.7 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-16 | 16 | 250 | 265 | 280 | 4000 | 500 | 112.7 | 54.4 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-18 | 18 | 250 | 265 | 280 | 3600 | 400 | 116 | 56 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-20 | 20 | 220 | 235 | 250 | 3200 | 400 | 119.3 | 57.7 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-22 | 22 | 220 | 235 | 250 | 3000 | 400 | 122.6 | 59.3 | 40 | 20 | M5 | 30 | 13 | M6 |
| BHP280-D-25 | 25 | 200 | 215 | 230 | 3000 | 400 | 127.6 | 61.6 | 40 | 22 | M5 | 30 | 13 | M6 |
| BHP280-D-28 | 28 | 180 | 190 | 200 | 2500 | 400 | 132.6 | 64.3 | 40 | 22 | M5 | 30 | 13 | M6 |
| BHP280-D-30 | 30 | 160 | 170 | 180 | 2500 | 400 | 135.9 | 66 | 40 | 22 | M5 | 30 | 13 |
M6 |
BM2 hydraulic motors
One type of LSHT motor,shaft distribution flow with radial force bearing .
| Type | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM3 | BM3 | |
| 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | ||
| Displacement | 124.1 | 14.7 | 200 | 248.3 | 319.2 | 400 | 518 | 666 | |
| Max. speed (rpm) | cont. | 400 | 310 | 250 | 200 | 150 | 125 | 160 | 125 |
| int. | 500 | 400 | 310 | 250 | 200 | 150 | 200 | 160 | |
| Max. torque (N•m) | cont. | 215 | 285 | 347 | 385 | 495 | 477 | 772 | 993 |
| int. | 268 | 355 | 459 | 470 | 568 | 620 | 1054 | 1355 | |
| Max. output (kW) | cont. | 8.8 | 9 | 9 | 8 | 8 | 6 | 13 | 13 |
| int. | 11 | 11 | 11 | 10 | 9 | 9 | 17 | 17 | |
| Max.pressure drop (MPa) | rated. | 14 | 14 | 14 | 12.5 | 12.5 | 10 | 12.5 | 12.5 |
| cont. | 17 | 17 | 17 | 14 | 14 | 12.5 | 16 | 16 | |
| Inlet.presure drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 7.2 | 7.8 | 8.1 | 8.4 | 9 | 9.5 | 17.5 | 18.5 | |
BM2:
