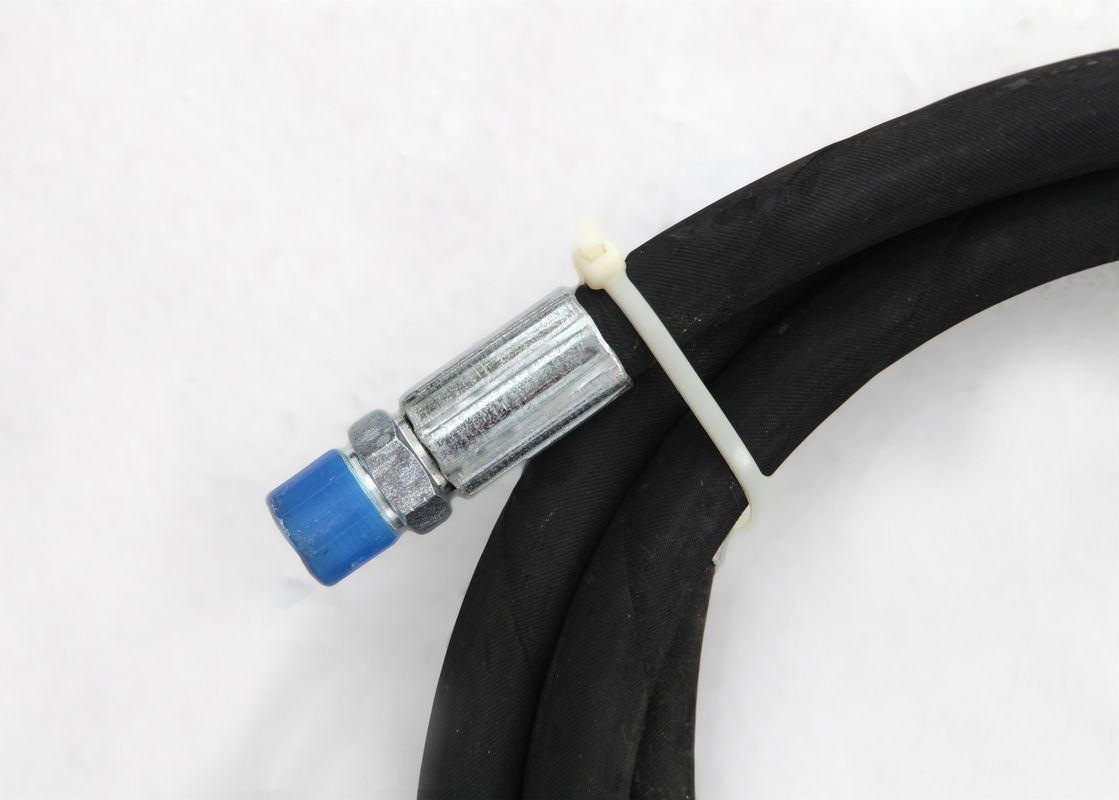

HYDRAULIC HOSE
The hose is made of excellent oil and weather resistant synthetic rubber. The reinforced layer is braided with copper facing wire witch can undertake high pressure, anti twist, and with good pulse pressure
Vastly used in petro, chemical, metallurgy, coal, mining, ship, waterpower and machinery manufacture.
For the convenience of the customers, We provide all kinds of rubber hose, such as SAE 100R1AT,R2, R3, R4, R12, R17: DIN EN 853 1SN, 2SN, Steel Wire Spiral Hydraulic Hose: DIN EN 856 4SP,4SH and so on
SAE 100R1AT:
| inside diameter | reforce diameter | outer diameter | working pressure | burst pressure | min.bend radius | weight | ||||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| 3/16 | 4.8 | 0.37 | 9.5 | 0.49 | 12.5 | 3000 | 210 | 12000 | 840 | 3.50 | 90 | 0.20 |
| 1/4 | 6.4 | 0.44 | 1.11 | 0.54 | 13.6 | 2750 | 192 | 11000 | 768 | 3.94 | 100 | 0.21 |
| 5/16 | 7.9 | 0.50 | 12.6 | 0.60 | 15.2 | 2500 | 175 | 10000 | 700 | 4.53 | 115 | 0.25 |
| 3/8 | 9.5 | 0.59 | 15.1 | 0.69 | 17.6 | 2250 | 157 | 9000 | 628 | 5.12 | 125 | 0.34 |
| 1/2 | 12.7 | 0.71 | 18.1 | 0.81 | 20.7 | 2000 | 140 | 8000 | 560 | 7.09 | 180 | 0.41 |
| 5/8 | 15.9 | 0.84 | 21.4 | 0.94 | 24.0 | 1500 | 105 | 6000 | 420 | 7.87 | 205 | 0.48 |
| 3/4 | 19.0 | 1.00 | 25.4 | 1.10 | 28.0 | 1250 | 87 | 5000 | 348 | 9.45 | 240 | 0.61 |
| 1 | 25.4 | 1.31 | 33.2 | 1.42 | 35.6 | 1000 | 70 | 4000 | 280 | 11.81 | 300 | 0.99 |
| 1 1/4 | 31.8 | 1.57 | 40.0 | 1.70 | 44.2 | 625 | 43 | 2500 | 172 | 16.54 | 420 | 1.40 |
| 1 1/2 | 38.1 | 1.84 | 46.8 | 2.00 | 51 | 500. | 35 | 2000 | 140 | 19.69 | 500 | 1.74 |
| 2 | 50.8 | 2.35 | 59.8 | 2.52 | 64.0 | 375 | 26 | 1500 | ||||
