Rexroth A10VSO-100 piston pump

Good quality Hydraulic Steering Unit for sales
I'm Online Chat Now

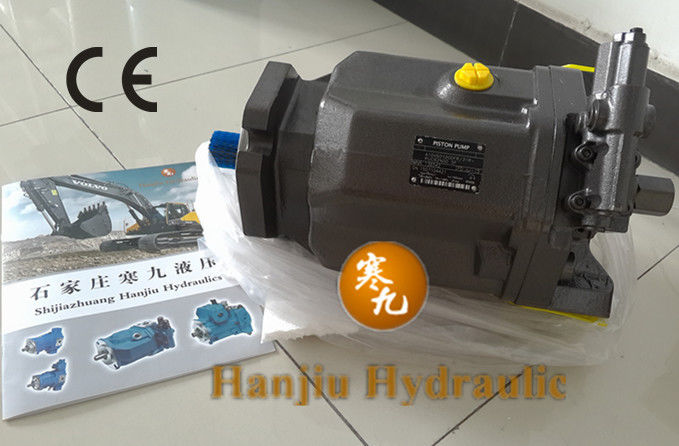

Rexroth A10VSO-100 piston pump

China Rexroth A10VSO-100 piston pump supplier

Large Image :  Rexroth A10VSO-100 piston pump

Product Details:

Place of Origin: China
Brand Name: Hanjiu Hydraulic
Certification: CE
Model Number: A10VSO

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Wooden case or others
Delivery Time: Within 10 days after receive the payment
Payment Terms: TT/LC, Western Union
Supply Ability: 3000 piece/ month
Contact Now
Detailed Product Description
Structure: Piston Pump Usage: Oil
Power: Hydraulic Standard Or Nonstandard: Standard
Fuel: Gasoline Pressure: High Pressure

Rexroth A10VSO of A10VSO16,.A10VSO18,A10VSO28,A10VSO45,A10VSO71,A10VSO100,A10VSO140 axial piston pump



1. Variable displacement axial piston  pump



2. Completely inerchangeable with original



3. For engineering machinery, maritime and boat and  industrial   machinery etc.
4. For open-loop Swashplate axial piston pump
5. Continuous working pressure up to 280bar, the instantaneous  maximum  working pressure up to 350bar
6. Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
7. There is constant pressure, constant-power  constant pressure, constant-voltage constant-flow and other control method, and the control response speed
8. Low-noise, high efficiency, high reliability, long life
9. Small size, high power density
10. Excellent oil absorption properties
11. Drive shaft can withstand the axial and    radial loads
12. SAE and ISO mounting flange
13. For pass-axis structure, and for multi-loop system



14. Very competitive price



15. 1 year of warranty





A10V(S)O Technical Parameter

Sizes







16/18

28

45

71

100

140

Displacement



Vg max

Cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800



Max. flow

At nmax



qv



L/min

59.4

84

117

156

200

252

At 1500r/min

27

42

68

107

150

210

(Δp=280bar )

Max. power

At nmax



Pmax



Kw

27.7

39

55

73

93

118

At 1500r/min

12.6

20

32

50

70

98

(Δp=280bar )

Max. torque

At Vg max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

kg

12

15

21

33

45

60
