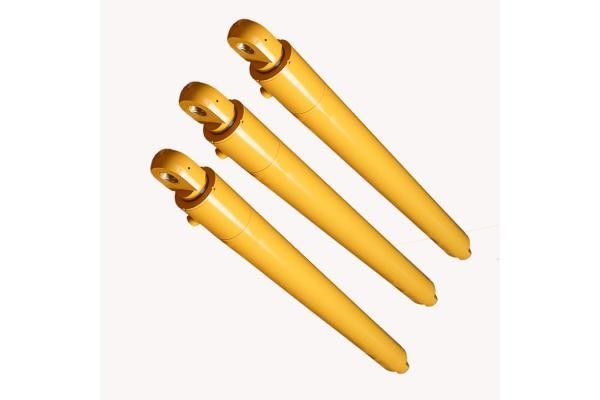

HSG Series is a double-acting single piston rod hydraulic cylinder, which is actuator working in reciprocating motion;
Simple structure, working reliably, convenient to installation, easy to maintain,with multiple cushion device and connection type;
Apply to engineering machinery, hoisting and conveying machinery, mining machinery, building machinery, vehicle, ships, metallurgy and other machinery etc..
BM2 hydraulic motors
One type of LSHT motor,shaft distribution flow with radial force bearing .
| Type | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM3 | BM3 | |
| 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | ||
| Displacement | 124.1 | 14.7 | 200 | 248.3 | 319.2 | 400 | 518 | 666 | |
| Max. speed (rpm) | cont. | 400 | 310 | 250 | 200 | 150 | 125 | 160 | 125 |
| int. | 500 | 400 | 310 | 250 | 200 | 150 | 200 | 160 | |
| Max. torque (N•m) | cont. | 215 | 285 | 347 | 385 | 495 | 477 | 772 | 993 |
| int. | 268 | 355 | 459 | 470 | 568 | 620 | 1054 | 1355 | |
| Max. output (kW) | cont. | 8.8 | 9 | 9 | 8 | 8 | 6 | 13 | 13 |
| int. | 11 | 11 | 11 | 10 | 9 | 9 | 17 | 17 | |
| Max.pressure drop (MPa) | rated. | 14 | 14 | 14 | 12.5 | 12.5 | 10 | 12.5 | 12.5 |
| cont. | 17 | 17 | 17 | 14 | 14 | 12.5 | 16 | 16 | |
| Inlet.presure drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 7.2 | 7.8 | 8.1 | 8.4 | 9 | 9.5 | 17.5 | 18.5 | |
