Replacement EATON Hydraulic steering units

China Replacement EATON Hydraulic steering units supplier

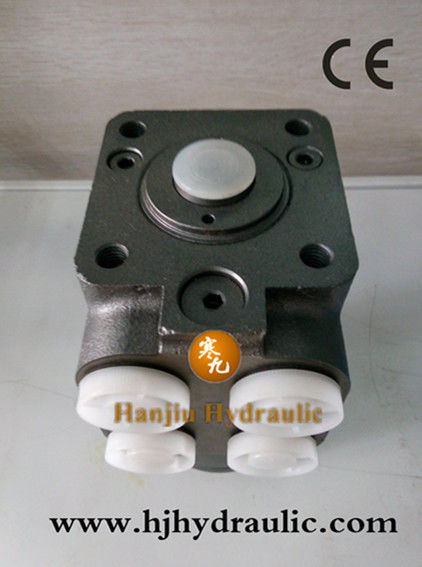

Large Image :  Replacement EATON Hydraulic steering units

Product Details:

Place of Origin: China
Brand Name: Hanjiu Hydraulic
Certification: CE
Model Number: 060

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: wooden case or others
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 pieces/month
Contact Now
Detailed Product Description

STEERING UNIT 060:



Product Description

060 integral series power steering units
060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.

Features
Incorporated five valves into the PSU, So it is more compact and convenient
Low hydraulic noise
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Displacement: 50~500 ml/r

Main specification data
Max. System pressure --------16MPa
Max. Back pressure -----------2.1MPa
Input torque--------------------1.7~2.5Nm
Max. System operating temperature--------93º C
Recommended oil filtration--------ISO 19/16

Function of the incorporated valve
Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.

displacement (ml/r) 50 63 80 100 125 160 200 250 315 400 500
L(mm) 137.5 139.5 139.5 142 150 150 155 161 171 181 193



Hydraulic steering unit applications:

Construction Machinery

Agriculture Machinery

Heavy-Duty Equipment

Forestry Machinery

Mining Equipment
