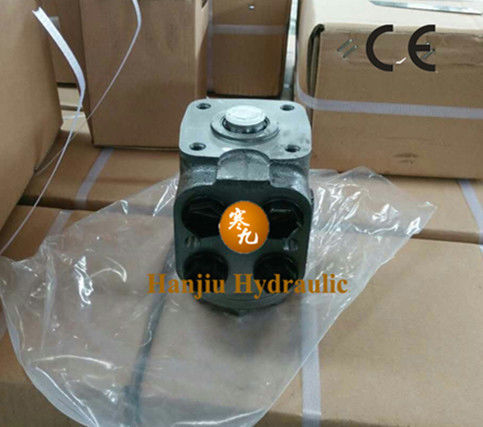

101 hydraulic steering units
Hydraulic Steering Unit 10 series is integral hydraulic steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the pressure control valve of the integral system.
Hydraulic Steering Unit 10 series is widely used in the steering control system of different kinds of engineering vehicles, such as the steering system of many kinds of industrial and agricultural mobile machinery Hydraulic Steering Unit 10 series is integral hydraulic steering unit, the forklift, loader, road roller, tractor, combine harvester, and the ship helm etc.
Parameters | Series 101-*-***-**-* |
||||||||||
Function code | 1,2,3 | 1,3 | |||||||||
Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
Max.input pressure(Mpa) | 16 | ||||||||||
Max.cont.back pressure | 2.5 | ||||||||||
Weight(kg) | 5.70 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 |
176 |
