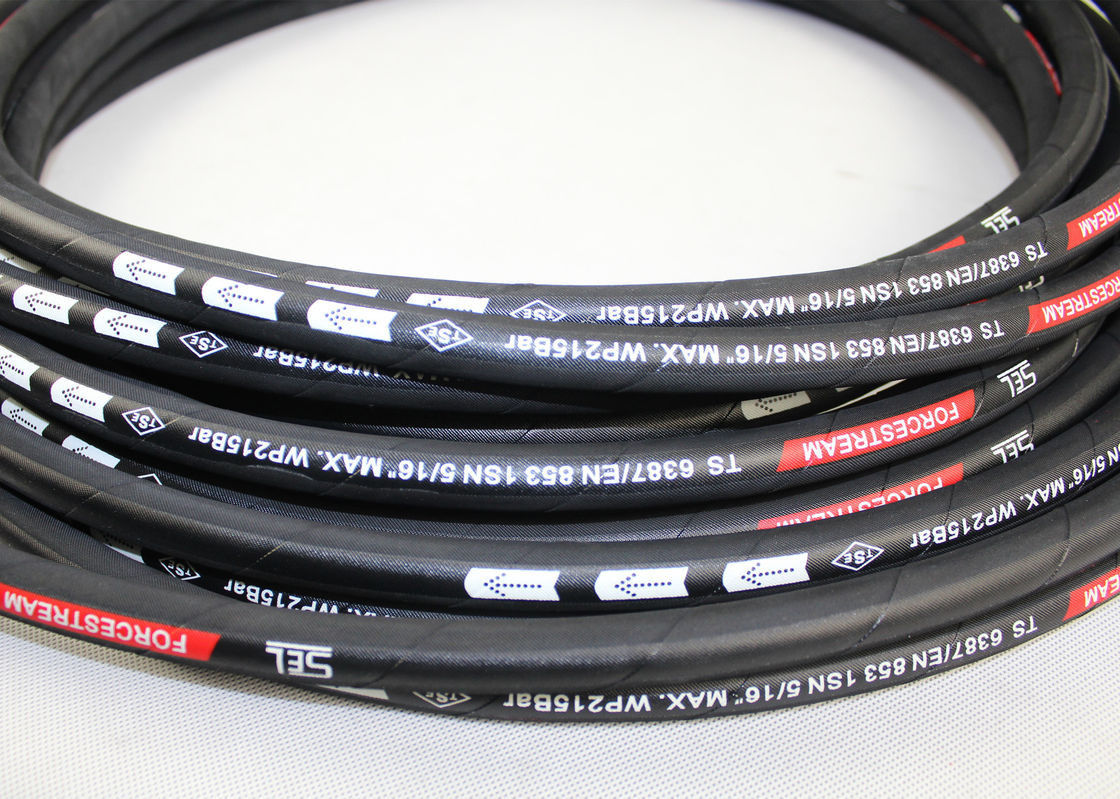

Usage of hydraulic hose and air hose for drilling rig
This product is used in coal mine hydraulic support, mining, engineering machinery hydraulic system, oil field has a certain pressure and temperature of water, emulsion, glycol solution, mineral oils, soluble oil, and other media.
Product structure of hydraulic hose and air hose for drilling rig
This hose is composed of 3 layers,an liquid resistant synthetic rubber, a steel wire reinforced layer and an excellent weather resistance ,antistatic properties and flame retardant synthetic rubber cover layer. protective layer can be added if special requirements to the rubber rubber cover layer.
|
specification |
inner dia |
tolerance |
steel wire dia |
outer dia |
tolerance |
working pressure |
test pressure |
minimum bend radius |
|
|
size |
tolerance |
||||||||
|
6x4SP |
6 |
0.5 |
14.4 |
0.8 |
19 |
1.0 |
100 |
150 |
130 |
|
8x4SP |
8 |
0.5 |
16.4 |
0.8 |
20.5 |
1.0 |
80 |
120 |
145 |
|
10x4SP |
10 |
0.5 |
17.8 |
0.8 |
22 |
1.0 |
70 |
105 |
160 |
|
13x4SP |
13 |
0.5 |
21.0 |
0.8 |
25 |
1.0 |
60 |
90 |
210 |
|
16x4SP |
16 |
0.5 |
25.0 |
0.8 |
29 |
1.0 |
55 |
82.5 |
260 |
|
19x4SP |
19 |
0.5 |
29.0 |
0.8 |
33 |
1.5 |
46 |
69 |
280 |
|
22x4SP |
22 |
0.8 |
33.0 |
0.8 |
37 |
1.5 |
40 |
60 |
320 |
|
25x4SP |
25 |
0.8 |
36.0 |
0.8 |
41 |
1.5 |
35 |
52.5 |
360 |
|
32x4SP |
32 |
0.8 |
44.0 |
0.8 |
49 |
1.5 |
32 |
46 |
460 |
|
38x4SP |
28 |
1.0 |
50.8 |
1.0 |
56 |
1.5 |
25 |
37.5 |
560 |
|
45x4SP |
45 |
1.0 |
57.8 |
1.0 |
61.8 |
1.5 |
23 |
34.5 |
650 |
|
51x4SP |
51 |
1.0 |
63.0 |
1.0 |
69 |
1.5 |
20 |
30 |
720 |
|
51x4SP |
51 |
1.0 |
65.5 |
1.0 |
71 |
1.5 |
35 |
70 |
900 |
|
64x4SP |
64 |
1.2 |
81.0 |
1.0 |
86 |
1.5 |
35 |
70 |
1100 |
|
76x4SP |
76 |
1.4 |
93.0 |
1.5 |
98 |
2 |
35 |
70 |
1200 |
|
89x4SP |
89 |
1.4 |
114.0 |
1.5 |
120 |
2 |
35 |
70 |
1300 |
|
102x4SP |
102 |
1.5 |
127.0 |
1.5 |
133 |
2 |
35 |
70 |
1400 |
|
127x4SP |
127 |
1.5 |
156.0 |
1.5 |
164 |
2 |
35 |
70 |
1500 |
|
152x4SP |
152 |
2.0 |
184.0 |
3.0 |
192 |
4.0 |
16 |
32 |
2580 |
|
203x4SP |
203 |
2.0 |
235.0 |
3.0 |
243 |
4.0 |
16 |
32 |
3350 |
|
254x4SP |
254 |
2.0 |
291.0 |
3.0 |
299 |
4.0 |
16 |
32 |
4110 |
