Product Details:
Payment & Shipping Terms:
|
| Usage: | Oil | Power: | Hydraulic |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Fuel: | Gasoline |
| Pressure: | High Pressure |

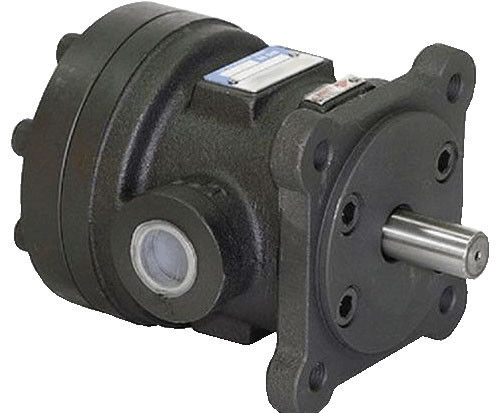

low pressure quantitative vane pump hydraulic vane pump hydraulic pump
Model Code:
50T-07-F-R,
50T-12-F-R ,
50T-14-F-R,
50T-36-F-R,
|
50T |
-36 |
-F |
R |
|
SERIES NUMBER |
DELIVRY(ML/R) |
MOUNTING TYPE |
SHAFT ROTATING |
|
50T |
REFER TO SPECIFCATION |
F:FLANGE |
R:CLOCKWISE |
|
150T |
50 SHAFT F:19.05 L:22 150T SHAFT:30.0
Technical Data of single pumps
|
Series |
Unloading delivery(ml/r) |
MAX OPERATING PERSSURE |
SPEED RANGE |
PORTS SIZE |
WEIGHT(KG) |
||||
|
RATED |
Max |
Min |
Max |
Out |
In |
Foot Type |
Flange type |
||
|
50T-07 |
6.8 |
70 |
90 |
800 |
2000 |
3/4 |
1 |
10.5 |
9.0 |
|
50T-12 |
11.6 |
600 |
2000 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-14 |
13.7 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-17 |
16.5 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-20 |
19.8 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-23 |
22.9 |
70 |
90 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
|
50T-26 |
25.9 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-30 |
29.6 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-36 |
36.0 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
50T-39 |
38.9 |
600 |
1800 |
3/4 |
1 |
10.5 |
9.0 |
||
|
150T-48 |
47.7 |
70 |
90 |
600 |
1500 |
11/4 |
11/2 |
26 |
25 |
|
150T-61 |
61.1 |
600 |
1500 |
11/4 |
11/2 |
26 |
25 |
||
|
150T-75 |
74.9 |
70 |
90 |
600 |
1500 |
11/4 |
11/2 |
26 |
25 |
|
150T-94 |
93.6 |
600 |
1200 |
11/4 |
11/2 |
26 |
25 |
||
|
150T-116 |
115.6 |
600 |
1200 |
11/4 |
11/2 |
26 |
25 |
||
BM2 hydraulic motors
One type of LSHT motor,shaft distribution flow with radial force bearing .
| Type | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM3 | BM3 | |
| 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | ||
| Displacement | 124.1 | 14.7 | 200 | 248.3 | 319.2 | 400 | 518 | 666 | |
| Max. speed (rpm) | cont. | 400 | 310 | 250 | 200 | 150 | 125 | 160 | 125 |
| int. | 500 | 400 | 310 | 250 | 200 | 150 | 200 | 160 | |
| Max. torque (N•m) | cont. | 215 | 285 | 347 | 385 | 495 | 477 | 772 | 993 |
| int. | 268 | 355 | 459 | 470 | 568 | 620 | 1054 | 1355 | |
| Max. output (kW) | cont. | 8.8 | 9 | 9 | 8 | 8 | 6 | 13 | 13 |
| int. | 11 | 11 | 11 | 10 | 9 | 9 | 17 | 17 | |
| Max.pressure drop (MPa) | rated. | 14 | 14 | 14 | 12.5 | 12.5 | 10 | 12.5 | 12.5 |
| cont. | 17 | 17 | 17 | 14 | 14 | 12.5 | 16 | 16 | |
| Inlet.presure drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 7.2 | 7.8 | 8.1 | 8.4 | 9 | 9.5 | 17.5 | 18.5 | |
BM2:
