Product Details:
Payment & Shipping Terms:
|
| High Light: | Hydraulic Pressure Pump,Pump,Press pump |
||
|---|---|---|---|

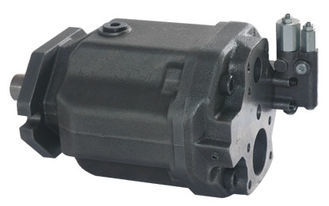

OEMDifferent Displacement High Pressure Hydraulic Pump, Flow Control
Quick details
OEM Different Displacement High Pressure Hydraulic Pump
displacement100cc/140cc
Pressure and Flow control
SAE 2 hole UNC inch thread
for Hydraulic system. Ship Hydraulic system
Features
1. Low noise level, high efficiency, high reliability and long service life.
2. Small volume, High power density.
3. Excellent oil absorbency.
4. Axial and radial loading of drive shaft possible.
5. SAE and ISO mounting flange.
6. Thru drive option for multi- circuit system.
Specifications:
Specifications: |
|
|
| 16/18 | 28 | 45 | 71 | 100 | 140 |
Displacement |
| Vg max | cm3 | 18 | 28 | 45 | 71 | 100 | 140 |
Max speed |
| nmax | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
Max. flow | in nmax | qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 |
in 1500 r/min | 27 | 42 | 68 | 107 | 150 | 210 | |||
Max. power (Δp=280bar) | in nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
in 1500 r/min | 12.6 | 20 | 32 | 50 | 70 | 98 | |||
Max. torque (Δp=280bar) | in Vg max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
Weight |
| m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
Applications:
Hydraulic system. Ship Hydraulic system.
suitable for hydraulic power transmission in Metal Forming Machine Tool, Construction
Machinery, PlasticMachinery and the field in Mining, Metallurgy, Shipbuilding,
Architectural machine,Water Product andConservancy so on.
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, SmallVolume
Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
