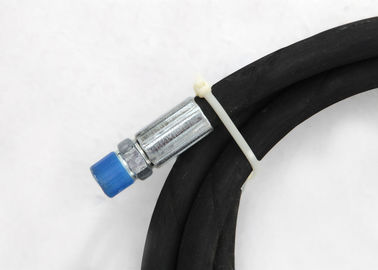

EN 853 2SN Hydraulic Hose Assembly with NPT Male Connectors
Description of Hydraulic Hose:
Construction:
Tube: NBR synthetic rubber.
Reinforcement: Two layers of high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: According to customers' request.
Specifications of Hydraulic Hose:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
R2-05 |
3/16 |
4.8 |
12.3 |
414 |
6000 |
1655 |
24000 |
100 |
|
0.32 |
|
R2-06 |
1/4 |
6.4 |
15.5 |
400 |
5800 |
1600 |
23200 |
100 |
0.0514 |
0.37 |
|
R2-08 |
5/16 |
8.0 |
16.5 |
350 |
5075 |
1400 |
20300 |
100 |
0.0612 |
0.412 |
|
R2-10 |
3/8 |
9.5 |
19.5 |
331 |
4800 |
1324 |
19200 |
100 |
0.0784 |
0.53 |
|
R2-13 |
1/2 |
12.7 |
22.5 |
276 |
4000 |
1103 |
16000 |
100 |
0.0833 |
0.64 |
|
R2-16 |
5/8 |
16.0 |
25.5 |
250 |
3630 |
1001 |
14520 |
50 |
0.074 |
0.77 |
|
R2-19 |
3/4 |
19.0 |
29.5 |
215 |
3120 |
860 |
12480 |
50 |
0.0833 |
0.96 |
|
R2-25 |
1 |
25.4 |
38.1 |
165 |
2400 |
662 |
9600 |
50 |
0.1445 |
1.35 |
|
R2-32 |
1 1/4 |
32.0 |
48.0 |
125 |
1820 |
502 |
7280 |
20 |
0.209 |
2.05 |
|
R2-38 |
1 1/2 |
38.0 |
55.0 |
90 |
1310 |
361 |
5240 |
20 |
0.2509 |
2.511 |
|
R2-51 |
2 |
50.8 |
68.6 |
80 |
1160 |
320 |
4640 |
20 |
0.3796 |
3.165 |
Description of Connection:
Connectors: both end: NPT Male Fitting.
Ferrule: 00210 for SAE 100 R2 AT / EN 853 2SN
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.
