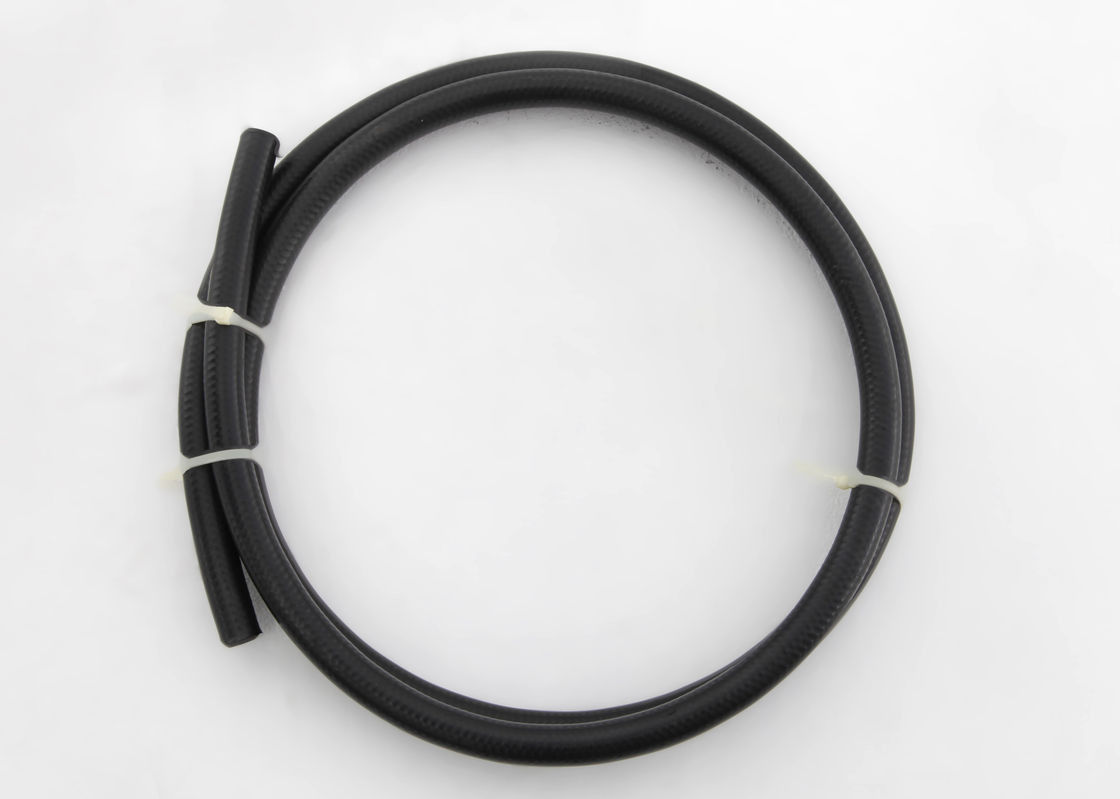

I.D. 1" Hydraulic Rubber Hoses in Smooth Bore , High Pressure
Description:
Construction:
Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: Usually it is 20m / roll
Specifications:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
R1-05 |
3/16 |
5.0 |
12.0 |
250 |
3630 |
1001 |
14520 |
100 |
0.0425 |
0.20 |
|
R1-06 |
1/4 |
6.4 |
14.0 |
225 |
3270 |
902 |
13080 |
100 |
0.0454 |
0.24 |
|
R1-08 |
5/16 |
8.0 |
15.1 |
215 |
3120 |
860 |
12480 |
100 |
0.0487 |
0.28 |
|
R1-10 |
3/8 |
10.0 |
17.5 |
180 |
2615 |
721 |
10460 |
100 |
0.0735 |
0.36 |
|
R1-13 |
1/2 |
12.5 |
20.0 |
160 |
2320 |
640 |
9280 |
100 |
0.0487 |
0.45 |
|
R1-16 |
5/8 |
16.0 |
24.0 |
130 |
1890 |
521 |
7560 |
50 |
0.0784 |
0.51 |
|
R1-19 |
3/4 |
19.0 |
28.0 |
105 |
1530 |
422 |
6120 |
50 |
0.0686 |
0.65 |
|
R1-25 |
1 |
25.0 |
36.0 |
88 |
1280 |
353 |
5120 |
50 |
0.0949 |
0.96 |
|
R1-32 |
1 1/4 |
32.0 |
43.5 |
63 |
920 |
254 |
3680 |
20 |
0.121 |
1.25 |
|
R1-38 |
1 1/2 |
38.0 |
50.1 |
50 |
730 |
201 |
2920 |
20 |
0.1452 |
1.60 |
|
R1-51 |
2 |
51.0 |
63.6 |
40 |
580 |
160 |
2320 |
20 |
0.2197 |
2.20 |
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.
