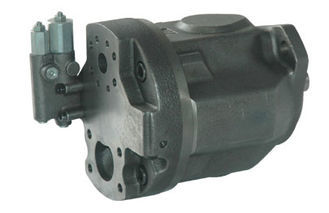

Custom Low Noise Hydraulic Pressure Pump , Displacement 45cc / 28cc
Quick details
Tandem Hydraulic Pumps
displacement is 18cc/28cc/45cc/71cc
Perbunan seals
SAE 2 hole UNC inch thread
for Hydraulic system. Ship Hydraulic system
Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
OEM Pressure Hydraulic Pumps for Ship Hydraulic System
Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
Specifications:
|
Specifications: |
|
|
|
16/18 |
28 |
45 |
71 |
100 |
140 |
|
Displacement |
|
Vg max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
|
Max speed |
|
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
|
Max. flow |
in nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
|
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
|
Max. power (Δp=280bar)
|
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
118 |
|
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
|
Max. torque (Δp=280bar)
|
in Vg max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
|
Weight |
|
m |
Kg |
12 |
15 |
21 |
33 |
45 |
60 |
Applications:
Hydraulic system. Ship Hydraulic system.
suitablefor hydraulic power transmission in Metal Forming Machine Tool, Construction
Machinery, PlasticMachinery and the field in Mining, Metallurgy, Shipbuilding,
Architectural machine,Water Product andConservancy so on.
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, SmallVolume
