Pressure Flow Control, 140cc Displacement Tandom Hydraulic Axial Piston Pumps ,

Good quality Hydraulic Steering Unit for sales
I'm Online Chat Now

Pressure Flow Control, 140cc Displacement Tandom Hydraulic Axial Piston Pumps ,

China Pressure Flow Control, 140cc Displacement Tandom Hydraulic Axial Piston Pumps , supplier

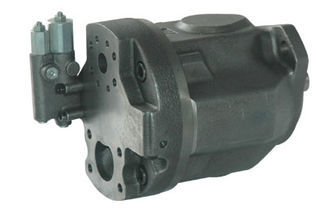

Large Image :  Pressure Flow Control, 140cc Displacement Tandom Hydraulic Axial Piston Pumps ,

Product Details:

Place of Origin: China
Brand Name: Hanjiu
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Wooden case
Delivery Time: Within 7 days after receive the payment
Payment Terms: TT/LC
Supply Ability: 10000 pieces/month
Contact Now
Detailed Product Description
High Light:

Hydraulic Pressure Pump

,

Pump

,

Press pump

140ccDisplacementTandom Hydraulic    Axial Piston Pumps , Pressure Flow Control

Quick details

Hydraulic Piston Pumps

displacement100cc/140cc

Pressure and Flow control

Perbunan seals

Splined shaft

for Hydraulic system. Ship  Hydraulic system



Hydraulic System Tandom Hydraulic Piston Pumps



Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump



Specifications:

Specifications:







16/18

28

45

71

100

140

Displacement



Vg max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)



in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)



in Vg max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60





Applications:

Hydraulic system. Ship Hydraulic system.



Advantage:

Good quality, Competitive price and quick delivery.

Low noise, SmallVolume



Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
