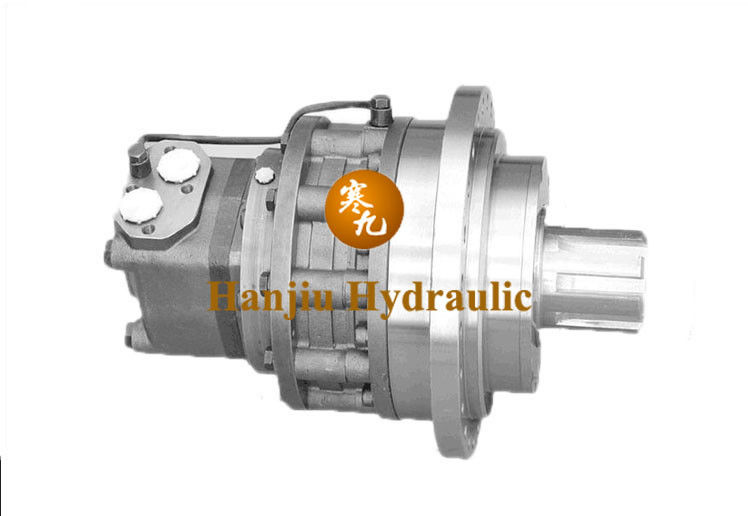

ZJM decelerator associated hydraulic motor is made up of planet gear decelerator and hydraulic motor. Small, stable at low speed, high performance and low price. Especially fit for small radial space, low speed and large torque needed working place.
TECHNICAL DATA
TYPE |
Displacement ml/r |
Max pressure Mpa |
Max torque N.m |
Speed range (r/min)n |
Ratio of gearbox |
Associated motor |
Weight kg |
mm Length |
| ZJM1.03-730/B | 728.6 | 11.5 | 1000 | 9-60 | 4.85 | BM4-160 | 40 | 425 |
| ZJM1.03-920/B | 921.3 | 13.6 | 1500 | 9-60 | 4.85 | BM4-200 | 40 | 429.5 |
| ZJM1.03-1450/B | 1456.8 | 11.5 | 2000 | 9-50 | 4.85 | BM4-320 | 40 | 442 |
| ZJM1.03-1840/B | 1842.6 | 13.7 | 3000 | 9-40 | 4.85 | BM4-400 | 40 | 451 |
| ZJM1.06-2730/B | 2731.3 | 12.3 | 4000 | 7-40 | 4.42 | BM5-630 | 100 | 465.5 |
| ZJM1.06-3480/B | 3481.1 | 12 | 5000 | 6-35 | 4.42 | BM5-800 | 100 | 479.5 |
| ZJM1.06-4285/B | 4284.4 | 11.7 | 6000 | 6-30 | 4.42 | BM5-985 | 100 | 494.5 |
| ZJM600/C | 580 | 20 | 1500 | 3-65 | 6 | JMDG2-100 | 45 | 350 |
| ZJM900/C | 940 | 20 | 2260 | 3-65 | 6 | JMDG2-150 | 45 | 350 |
| ZJM1000/C | 1050 | 20 | 2630 | 3-65 | 6 | JMDG2-175 | 45 | 350 |
| ZJM1200/C | 1200 | 20 | 3000 | 3-65 | 6 | JMDG2-200 | 45 | 350 |
| ZJM1500/C | 1520 | 25 | 4780 | 2-58 | 6 | JMDG3-250 | 85 | 345 |
| ZJM1800/C | 1730 | 20 | 4500 | 2-58 | 6 | JMDG3-300 | 85 | 345 |
| ZJM2100/C | 2100 | 20 | 5260 | 2-58 | 6 | JMDG3-350 | 85 | 345 |
| ZJM4200/C | 4258 | 14.8 | 8000 | 7-35 | 5.6 | JMDG6-750 | - | 497.5 |
| ZJM6300/C | 6307 | 15 | 12000 | 6-35 | 5.6 | JMDG8Y-1100 | - | 502.5 |
| ZJM7000/C | 6900 | 20 | 17500 | 3-65 | 5 | JMDG16-1400 | - | 478 |
| ZJM10000/C | 10000 | 20 | 25400 | 3-45 | 5 | JMDG16-2000 | - | 478 |
| ZJM12000/C | 12000 | 16 | 24000 | 3-40 | 5 | JMDG16-2400 | - |
478 |
