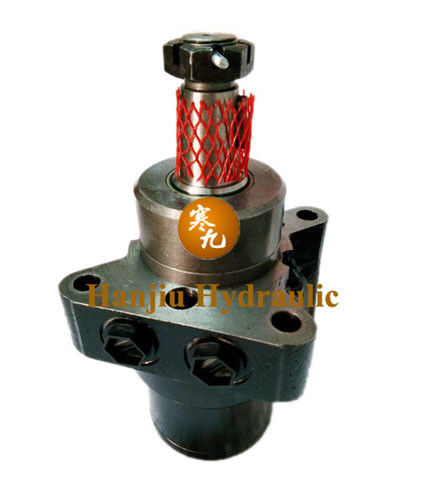

This series of motor,with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and min machines, such as the mould height adjustment of the injection molding machine, the cleaner, the saw the worktable etc.
TECHNICAL DATA
TYPE |
BMR-50 BMRW-50 BMRS-50 |
BMR-80 BMRW-80 BMRS-80 |
BMR-100 BMRW-100 BMRS-100 |
BMR-125 BMRW-125 BMRS-125 |
BMR-160 BMRW-160 BMRS-160 |
BMR-200 BMRW-200 BMRS-200 |
BMR-250 BMRW-250 BMRS-250 |
BMR-315 BMRW-315 BMRS-315 |
BMR-400 BMRW-400 BMRS-400 |
|
| (ml/r) Displacement |
51.7 | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
Max.Pressure.Drop(Mpa) |
cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
| int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 | |
| peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 | |
| Max.Torque(N.m) | cont. | 93 | 152 | 194 | 237 | 310 | 369 | 380 | 380 | 380 |
| int. | 118 | 189 | 236 | 296 | 378 | 450 | 470 | 470 | 470 | |
| peak. | 135 | 216 | 270 | 338 | 433 | 509 | 540 | 540 | 540 | |
| Speed.Range(cont.)(r/min) | 10-775 | 10-750 | 10-600 | 10-475 | 10-375 | 10-300 | 10-240 | 10-190 | 10-160 | |
| Max.Flow(cont.)(L/min) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Max.Output.Power(cont.)(Kw) | 7 | 10 | 10 | 10 | 10 | 8 | 6 | 5 | 4 | |
Weight(kg) |
6.5 | 6.9 | 7.0 | 7.3 | 7.5 | 8.0 | 8.5 | 9.0 | 11 | |
