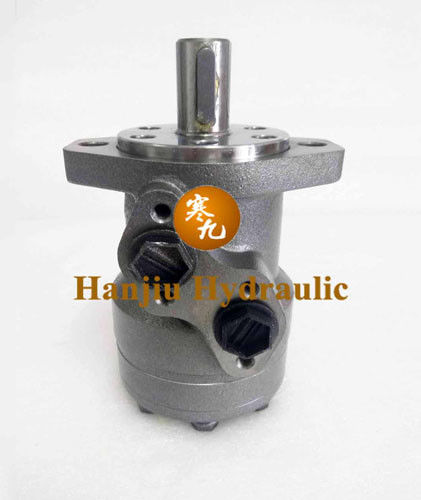

Hydraulic Orbit Motor BMR
BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life. Characteristic Features: *Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency. *Shaft seal can bear high pressure of back and the motor can be used in parallel or in series. *Special design in the driver-linker and prolong operating life *Special design for distribution system can meet the requirement of low noise of unit. *Compact volume and easy installation. |
Order Code: |
Code | |
BMR | |
Displacement | |
36 50 80 100 125 160 200 250 315 375 |
|
Flange | |
2 | 2-Ø13.5 Rhomb-flange,pilot Ø82.5×8 |
4 | 4-Ø13.5 Rhomb-flange,pilot Ø82.5×8 |
H4 | 4-3/8-16 Square-flange,pilot Ø44.4×2.8 |
H5 | 4-M10 Square-flange,pilot Ø44.4×2.8 |
Output Shaft | |
A | Shaft Ø25,parallel Key 8x7x32 |
B | Shaft Ø32,parallel Key 10x8x45 |
C | Shaft Ø25.4,parallel Key 6.35x6.35x31.75 |
E | Shaft Ø25.4,splined tooth SAE 6B |
R | Short shaft Ø25.4,parallel key 6.35x6.35x31.75 |
F | Shaft Ø31.75,splined tooth 14-DP12/24 |
FD | Long shaft Ø31.75,splined tooth 14-DP12/24 |
G | Shaft Ø31.75,parallel Key 7.96x7.96x31.75 |
T | Cone-Shaft Ø28.56,parallel Key B5x5x14 |
Port and Drain Port | |
D | G1/2 Manifold Mount 4-M8, G1/4 |
M | M22×1.5 Manifold Mount 4-M8, M14×1.5 |
S | 7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF |
P | 1/2-14 NPTF Manifold 4-5/16-18UNC,7/16-20UNF |
R | PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4 |
Rotation Direction | |
Omit | Standard |
R | Opposite |
Paint | |
00 | No paint |
Omit | Blue |
B | Black |
S | Silver grey |
Unusually Function | |
Omit | Standard |
N | Big radial force |
O | No case drain |
F | Free Running |
LS | Low Speed |
Main Specifications: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical data for BMR with 31.75 and 32 shaft: |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Continuous pressure:Max.value of operating motor continuously. * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute. |
Substitute Reference substance
MOTOR CROSS REFERENCE TABLE |
||||||||
HANJIU HYDRAULIC |
M+S HYDRAULIC |
EATON CHAR LYNN |
DANFOSS | ROSS TRW |
WHITE CROSS |
PARKER | SAM BREVINI |
BOSCH RECROTH |
BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV |
Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment
