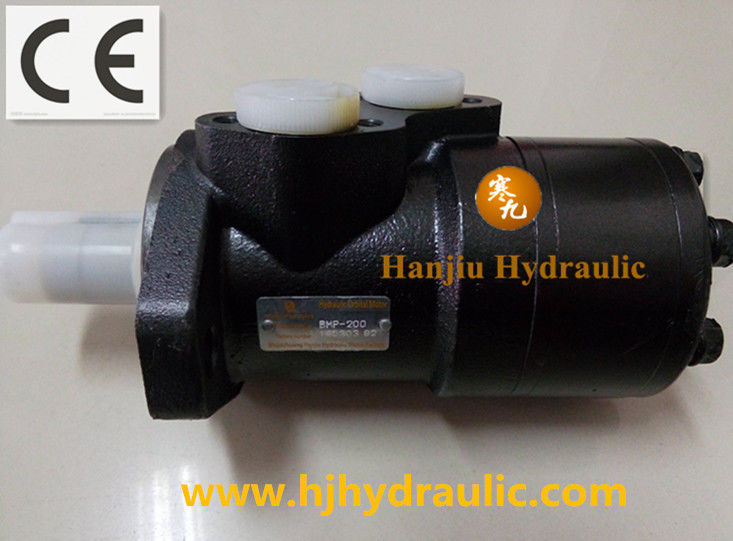

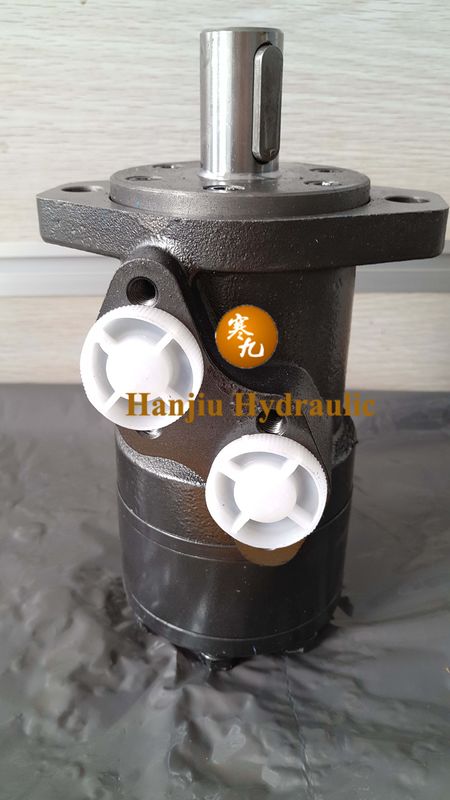

BM1 series hydraulic motor
One type of LSHT motor, BM1 series motor are small volume, economical type,which is designed with shaft distribution flow, which adapt the Gerotor gear set design improves mechanical efficiency,provide reliable leak-free performance and smooth operation.Especially at start-up and low speed conditions
| Type | BM1 | BM1 | BM1 | BM1 | BM1 | BM1 | BM1 | BM1 | BM1 | |
| BYM | BYM | BYM | BYM | BYM | BYM | BYM | BYM | BYM | ||
| 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 | ||
| Displacement | 51.3 | 80.6 | 100.8 | 124.9 | 157.2 | 199.2 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 755 | 750 | 600 | 475 | 375 | 300 | 240 | 190 | 160 |
| int. | 970 | 940 | 750 | 600 | 470 | 375 | 300 | 240 | 200 | |
| Max. torque (N•m) | cont. | 100 | 190 | 240 | 292 | 363 | 358 | 352 | 360 | 420 |
| int. | 126 | 220 | 280 | 340 | 430 | 448 | 470 | 470 | 548 | |
| Max. output (kW) | cont. | 7.7 | 15 | 15 | 14 | 14 | 11 | 9 | 7 | 8.6 |
| int. | 9.7 | 17 | 17 | 16 | 16 | 14 | 12 | 9 | 12 | |
| Max.pressure drop (MPa) | rated. | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 8.5 | 8.5 |
| cont. | 14 | 17.5 | 17.5 | 7.5 | 16.5 | 13 | 11 | 8.5 | 8.5 | |
| Max. flow (L/min) | cont. | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight(kg) | 6.7 | 6.9 | 6.9 | 7.2 | 7.5 | 8 | 8.5 | 9 | 9.3 | |
