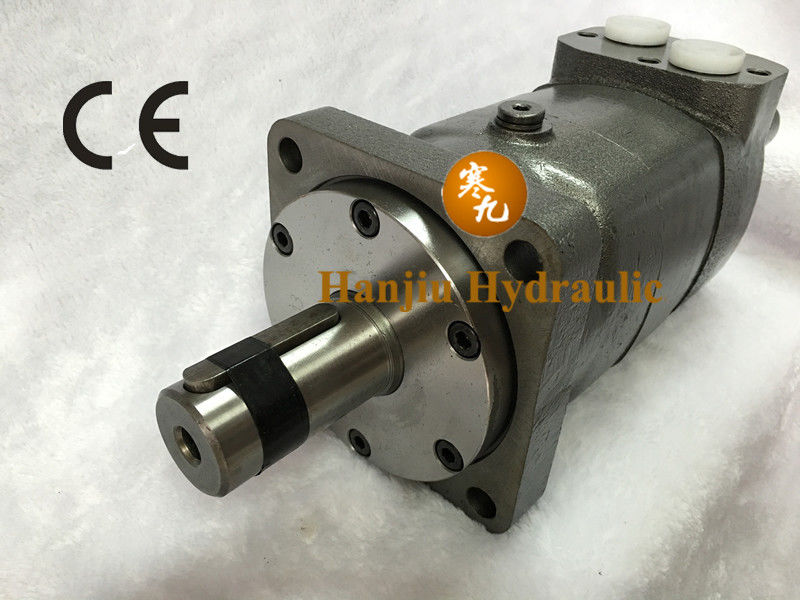

BM6 motor is a disc valve type gerolor motor.
Characteristic features:
1. Advanced design in disc distribution flow, which can provide improved performance at low speed.
2. Advanced design of shaft seal,which can bear higher pressure.
3. Advanced distribution mechanism design, which has the automatic compensation function.
4. Double-rolling bearing design,which permit higher radial loads.
5. A variety of connection types of flange,output shaft and oil port.
Main specification
| Displacement(ml/r) | 195 | 245 | 310 | 390 | 490 | 625 | 800 | 985 | |
| Flow | Max continuous | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| (LPM) | Intermittent | 170 | 210 | 225 | 225 | 225 | 225 | 225 | 225 |
| Speed | Max continuous | 776 | 615 | 484 | 385 | 308 | 242 | 186 | 155 |
| (RPM) | Intermittent | 865 | 836 | 699 | 572 | 453 | 354 | 275 | 230 |
| Pressure | Max continuous | 21 | 20.5 | 20.5 | 20.5 | 17 | 14 | 12 | 12 |
| (MPa) | Intermittent | 31 | 31 | 31 | 31 | 27.5 | 17 | 14 | 14 |
| Torque | Max continuous | 572 | 733 | 928 | 1156 | 1213 | 1331 | 1378 | 1565 |
| (N*m) | Intermittent | 852 | 1176 | 1356 | 1633 | 1878 | 1368 | 1645 | 1877 |
| TYPE | DISPLACEMENT | PRESSURE | FLOW | TORQUE | SPEED | WEIGHT | |||
| cc/r | cm³/rev. | ml/rev. | bar | mPa | (lnt./min) | n*m | rpm | kg | |
| LPM | |||||||||
| BM6-195 | 195 | 195 | 195 | 310 | 31 | 170 | 852 | 865 | 28.1 |
| BM6-245 | 245 | 245 | 245 | 310 | 31 | 210 | 1176 | 836 | 28.6 |
| BM6-310 | 310 | 310 | 310 | 310 | 31 | 225 | 1356 | 699 | 29.2 |
| BM6-390 | 390 | 390 | 390 | 310 | 31 | 225 | 1633 | 572 | 30 |
| BM6-490 | 490 | 490 | 490 | 275 | 27.5 | 225 | 1878 | 453 | 30.9 |
| BM6-625 | 625 | 625 | 625 | 170 | 17 | 225 | 1368 | 354 | 32.1 |
| BM6-800 | 800 | 800 | 800 | 140 | 14 | 225 | 1645 | 275 | 32.5 |
| BM6-985 | 985 | 985 | 985 | 140 | 14 | 225 | 1877 | 230 | 33.5 |
Note:
1. Intermittent means the entrance of the maximum pressure;continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. The Maximum working temperature is 80°.
5. The Maximum allowable back pressure is 10 MPa,but the recommended back pressure should not exceed 5PM.a drain pipes is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68 anti-wear hydraulic oil,viscosity 37-73cSt,cleanliness ISO18/13.
| Basic Info. | |
| Attribute | Attribute value |
| Model NO | BM6 |
| Power | Hydraulic |
| Export Markets | Global |
| Structure | Hydraulic motor,orbital hydraulic motor |
| Material | Cast iron |
| OEM | Accept |
